    Temperaturmessung der Siebträger-Temperatur mit Scace und co.

    Portafilter temperature measurement using Scace and similar tools.

    Precise control of brewing temperature is a decisive factor for espresso quality. To measure this temperature reliably, the Scace 2 was developed as a temperature measuring portafilter - a precision measuring device that primarily measures temperature, but optionally also pressure, directly at the brew group. We use the Scace 2, which we have had adapted for various portafilter sizes. Currently, 7 Scaces are in use at our two coffee academies and in the test lab. Additionally, we use two other temperature measuring devices for espresso machines to check the behavior of different portafilters and machines. One of these portafilters has, in addition to the temperature probe, pressure and flow recording, which can be recorded digitally.

    Principle of Temperature Measurement in the Portafilter

    Temperature measurement in the portafilter is complex because it must be done under realistic brewing conditions. A simple thermometer in the water flow is not sufficient, as the extraction and typical conditions must be simulated that also occur during a classic shot in the portafilter. This includes water flow, pressure, the so-called headspace, i.e., the space between the coffee puck and the shower head. The Scace 2 solves this problem by:

    1. Positioning a Type-T temperature sensor at the correct location
    2. Simulating the coffee puck through a special rubber insert
    3. Mimicking the correct water flow

    Compared to actual coffee, there are still deviations because the rubber insert, for example, cannot absorb brewing water. This must be taken into account when calculating water quantity.

    Zuriga E2 Gen2 KM Temperature Protocol

    The Scace 2 Thermofilter in Detail

    The Scace 2 is an advanced measuring instrument with the following properties:

    • Precise temperature measurement: It measures temperature to 0.1°C accuracy.
    • Fast response time: The temperature sensor responds in less than 0.25 seconds.

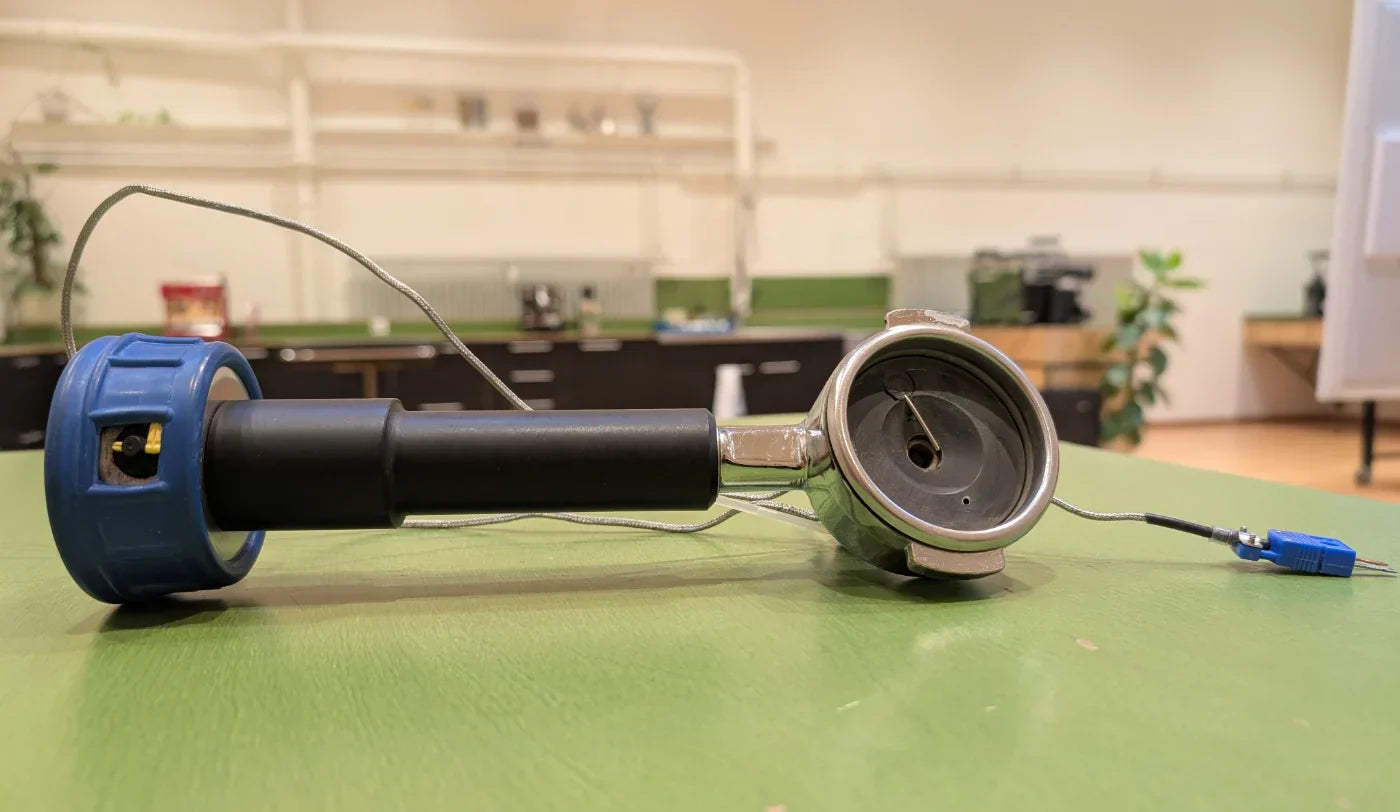

    • Integrated pressure measurement: A glycerin-filled manometer shows the brewing pressure. There are Scaces with and without pressure measurement.
    • Coffee puck simulation: A plastic insert with low thermal conductivity simulates the resistance of coffee grounds.

    Application and Use

    The Scace 2 is inserted into the brew group like a normal portafilter. It is suitable for:

    • Commissioning and maintenance of high-quality espresso machines
    • Quality control in coffee shops and roasteries
    • Precise machine adjustment for reproducible results
    • Espresso machine testing and comparability of espresso machines (WBC Protocol, Coffee maker Protocol).
    scace for quickmill

    Special custom-made Scace 2 for Quick Mill espresso machines with three bayonet wings.

    Technical Limitations

    • Compatible with most commercial E61 brew groups as well as 58mm brew groups such as La Marzocco, Rancilio, Rocket, ECM, Maro, etc.
    • For testing various other espresso machines, we have had special portafilters made in sizes 53, 54, and also 57, which work according to the same principles. This way, for example, we also measured budget machines like the Delonghi Dedica.
    • Requires a digital thermometer with T-type connection for temperature display.
    Measuring portafilter setup

    Our test equipment collection has escalated a bit over the years.

    flow pressure temperature portafilter

    Portafilter for recording flow, temperature, and pressure conditions in the portafilter.
